If your battery is healthy one morning and flat the next, the problem is often a parasitic drain — something drawing current while the car is switched off. Tracking it down is one of the most useful diagnostic skills a driver can learn, and with an inexpensive digital multimeter you can isolate the guilty circuit yourself before spending money on parts.
What is a parasitic battery drain?
Every modern car keeps a few systems alive when parked: the clock, alarm, keyless-entry receiver, and the control modules that need memory. This is normal. A parasitic drain is when something draws far more than that background level — a stuck relay, a glovebox or boot light that never switches off, a faulty amplifier, or an aftermarket accessory wired incorrectly. Left unchecked, it flattens the battery overnight or over a few days of parking.
How much parasitic draw is normal?
Once all the modules have “gone to sleep” — which can take anywhere from a few minutes to around 30 minutes after you lock the car — a typical vehicle settles to roughly 20 to 50 milliamps (0.02–0.05 A). Anything consistently above about 50 mA on an older car, or above the figure in your service manual, is worth investigating. Vehicles with many electronic modules can sit slightly higher, so treat 50 mA as a guide, not an absolute limit.
What you need to test for a parasitic drain
- A digital multimeter that can measure at least 10 amps of DC current (most can).
- Insulated spanners to disconnect the battery terminal.
- Safety glasses and gloves.
- A fuse puller or plastic tweezers and your car’s fuse-box diagram.
- A notepad to record the reading as you pull each fuse.

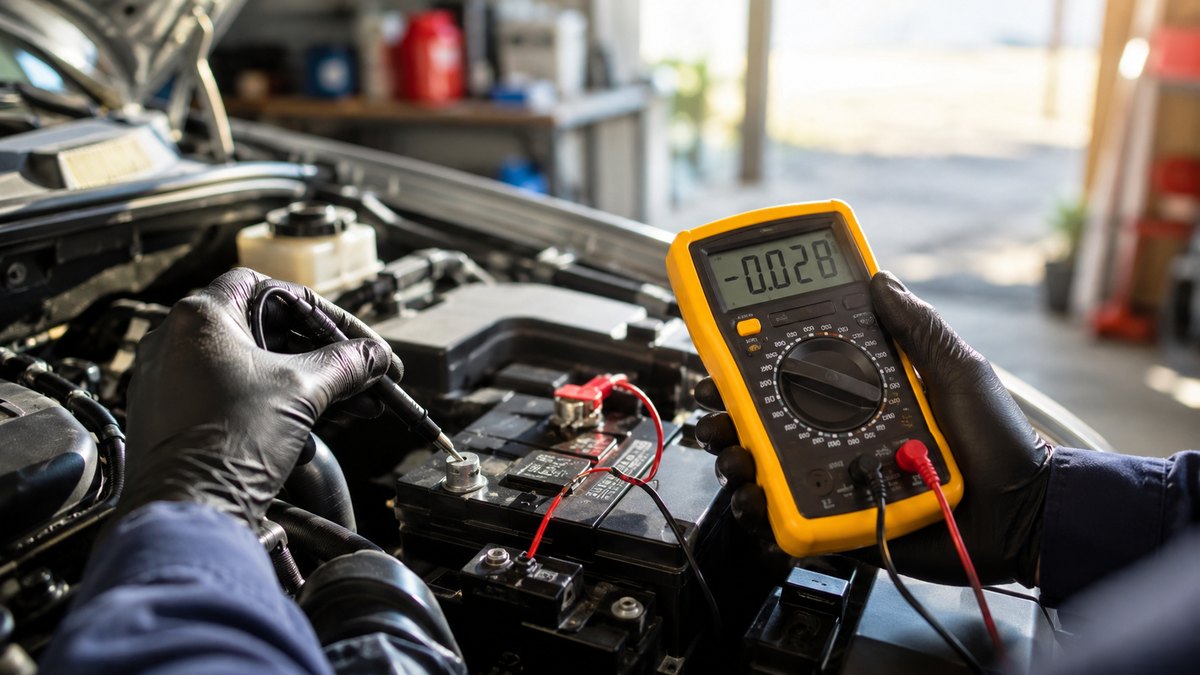

How to test for a parasitic drain with a multimeter
Work methodically and do not rush the “sleep” step, because that is where most people get a false reading.
- Prepare the car. Park it, switch everything off, close the doors (use a window or hold the door switch so interior lights don’t stay on), and remove the key. Let it sit so the modules power down.
- Set the meter to DC amps. Move the red lead to the 10‑amp (10A) socket and select the highest DC current range.
- Disconnect the negative terminal. Loosen and lift off the negative (–) battery cable only.
- Wire the meter in series. Connect one probe to the negative battery post and the other to the disconnected cable, so all current now flows through the meter. Never connect the meter across the two battery posts in current mode — that creates a short.
- Wait, then read. Let the modules settle again and read the steady current. If it is above your target, start isolating.
- Pull fuses one at a time. Remove each fuse, watch the meter, and note any fuse that makes the current drop sharply. That circuit contains the drain. Reinsert each fuse before moving to the next.
Reading the results
| What you see | Likely meaning |
|---|---|
| Steady 20–50 mA after sleep | Normal background draw — a battery or charging fault is more likely |
| Current drops when one fuse is pulled | The drain is on that circuit — inspect its components and wiring |
| High reading that never settles | A module is staying awake; wait longer or look for a trigger (door switch, boot latch) |
| Current only appears after driving | A component isn’t powering down after use — often audio, telematics, or an accessory |
Important safety notes
Do not start the engine or switch on heavy loads (headlights, blower, heated screen) while the meter is wired in series — the current will exceed the meter’s rating and can blow its internal fuse or damage it. Keep tools insulated, wear eye protection when working near a battery (which can vent explosive gas), and never let a spanner bridge the positive terminal to bare metal. If you are not comfortable disconnecting the battery, or your car has systems that require a re-learn procedure after power loss, have a qualified auto electrician carry out the test.
When to call a professional
If you have isolated a circuit but cannot find the fault, if the drain is intermittent, or if the vehicle uses complex power management (many newer cars do), an auto electrician has the clamp meters and wiring diagrams to trace it faster and without interrupting module memory. For general guidance on safe work practices around tools and electrical systems, see OSHA, and always follow the procedures in your vehicle’s service manual.
Frequently asked questions
How long should I wait before reading the parasitic draw?
Give the car at least 20 to 40 minutes after locking it so every module powers down. Reading too soon shows an artificially high figure because systems are still awake.
Can a parasitic drain damage my battery?
Repeatedly draining a battery flat shortens its life and can leave it unable to hold a charge, so it is worth fixing promptly rather than jump-starting every morning.
What draws power when the car is off?
The alarm, keyless-entry receiver, clock, and memory-keeping modules all draw a small, normal amount. A fault, stuck relay, or miswired accessory is what turns that background draw into a battery-killing drain.
